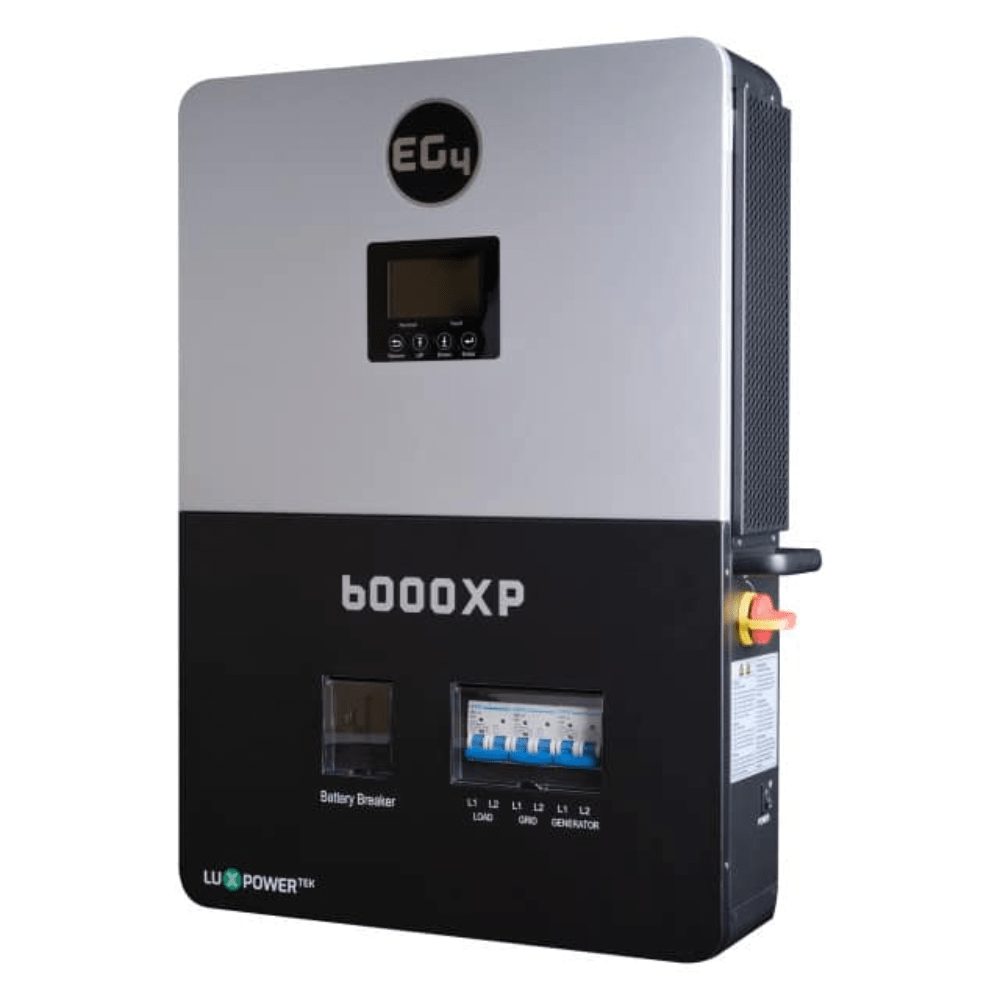

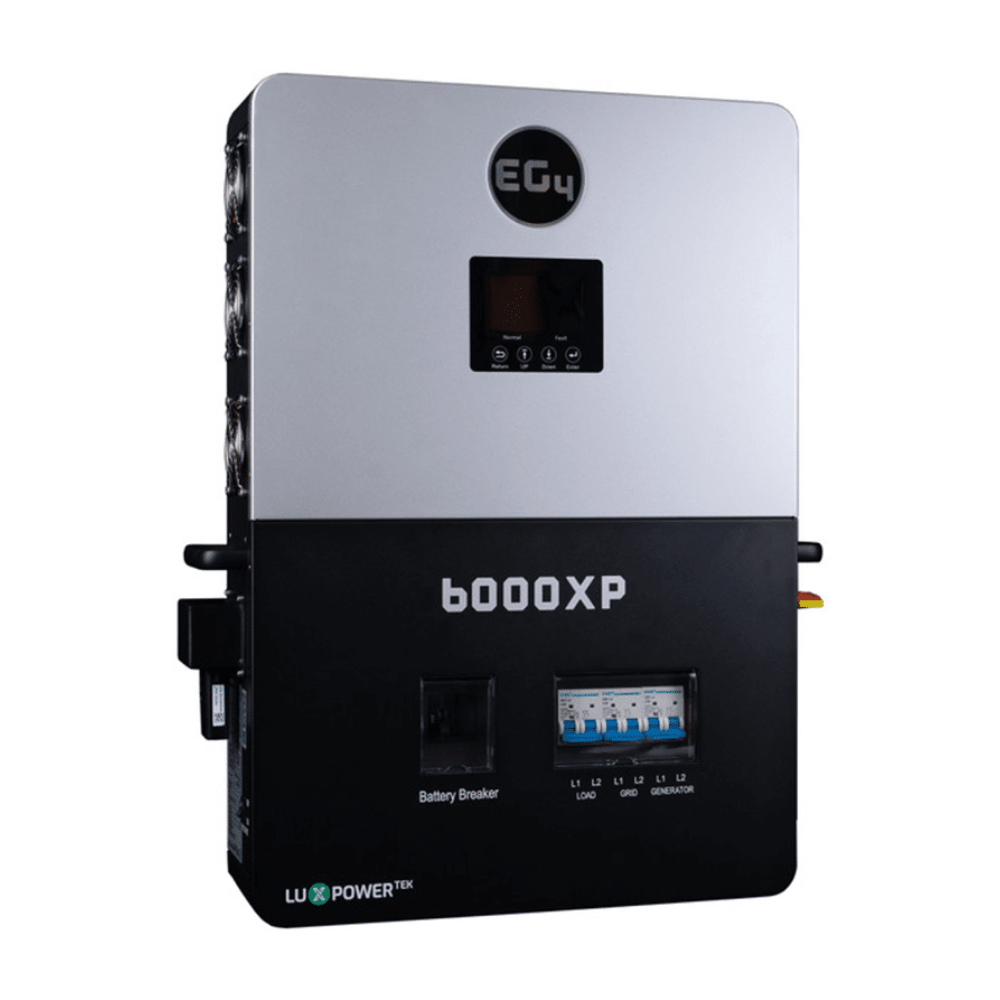

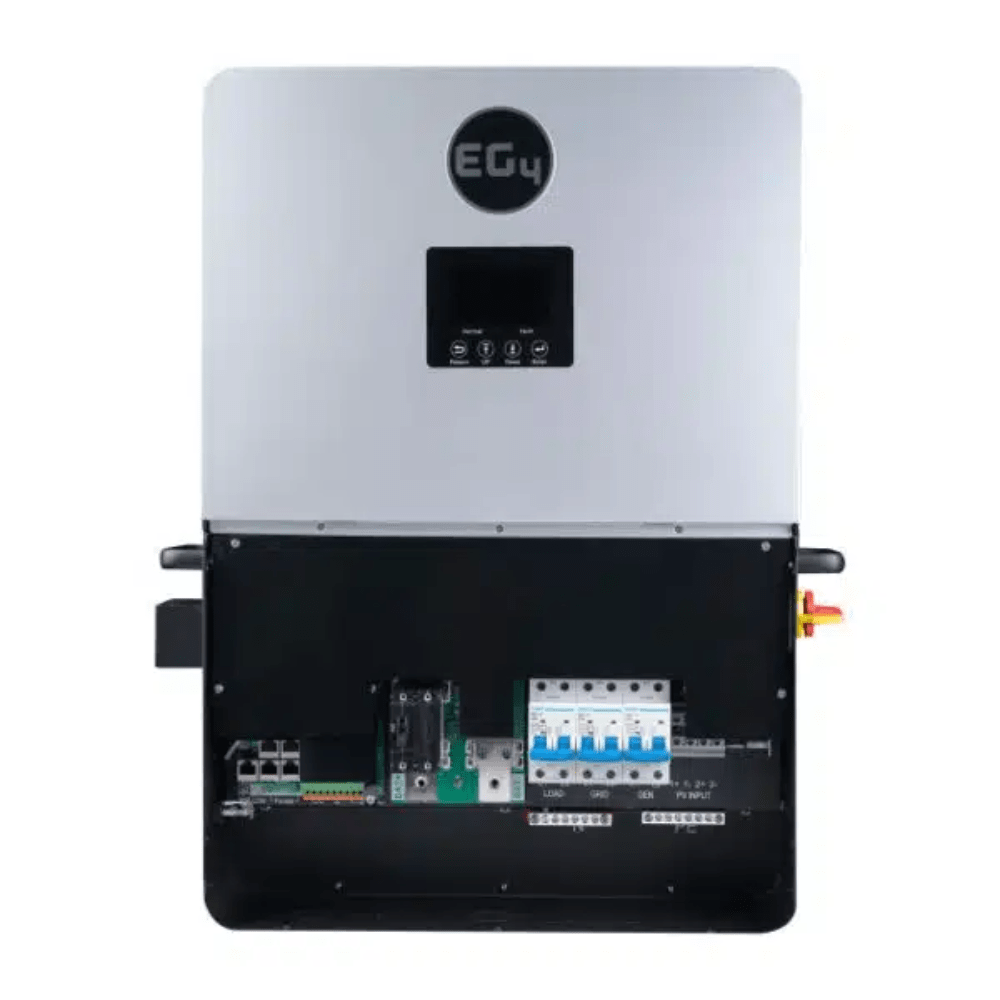

6000XP 48V DC All In One Solar Inverter with Charge Controller

6000XP 48V DC All In One Solar Inverter with Charge Controller

$1,520.00 USD
$1,520.00 USD
Sale Sold out
Shipping calculated at checkout.

AKJD9712

100 in stock

6000XP 48V DC 120/240V All In One Solar Inverter

The EG4 6000XP is a 48V 120/240V split-phase, off-grid inverter/charger with a built-in solar charge controller. It boasts the ability to take in 8kW of PV power and efficiently deliver 6kW of power, all while charging your battery bank. You can parallel up to 16 units to achieve an impressive 96kW of output power and control multiple stations and units using the new EG4 monitoring software.

Features:

  • Split Phase 120V/240V 48V DC
  • 6000W Of Inverting Power and 8000W of PV Input
  • Stackable Up To 16 units 96KW
  • Transformer Free Design
  • Dedicated Generator Connection

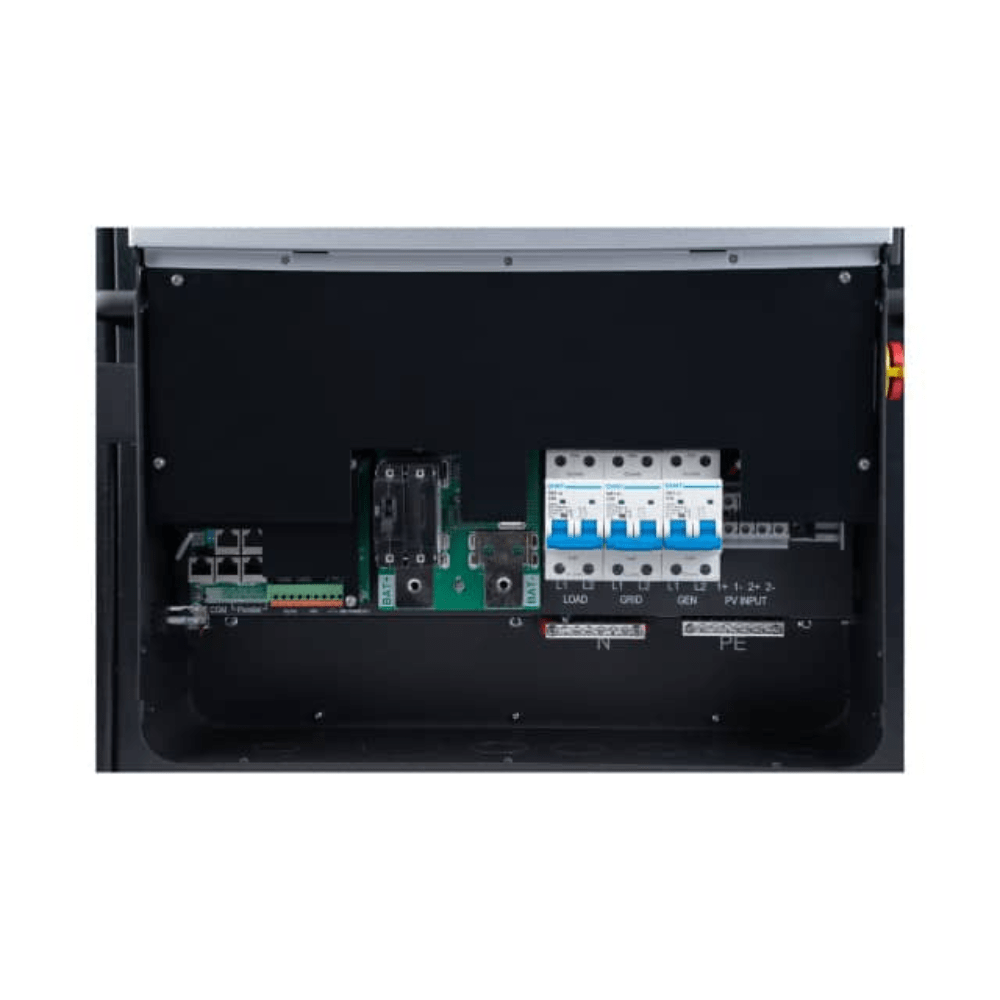

  • Built in Breakers and Disconnects
  • Remote Access
  • 5 Year Warranty

Specifications:

  • AC Output Voltage: 120/240 Volts (Split Phase) AC
  • Battery Charge Current: 115A
  • Battery Voltage: 48 Volts DC
  • Idle Consumption: 50W
  • Max PV Voltage (Voc): 480V
  • Nominal Output Power: 6000W
  • Max PV Input:10,000W
  • Max Charging Current:125A
  • Transfer Switch Capacity: 50A
  • Number of MPPTs:2 (4000W per)
  • Paralleling:16 units for 96kWs
  • Listing & Certifications: UL 1741 Certified
